Lecture 10

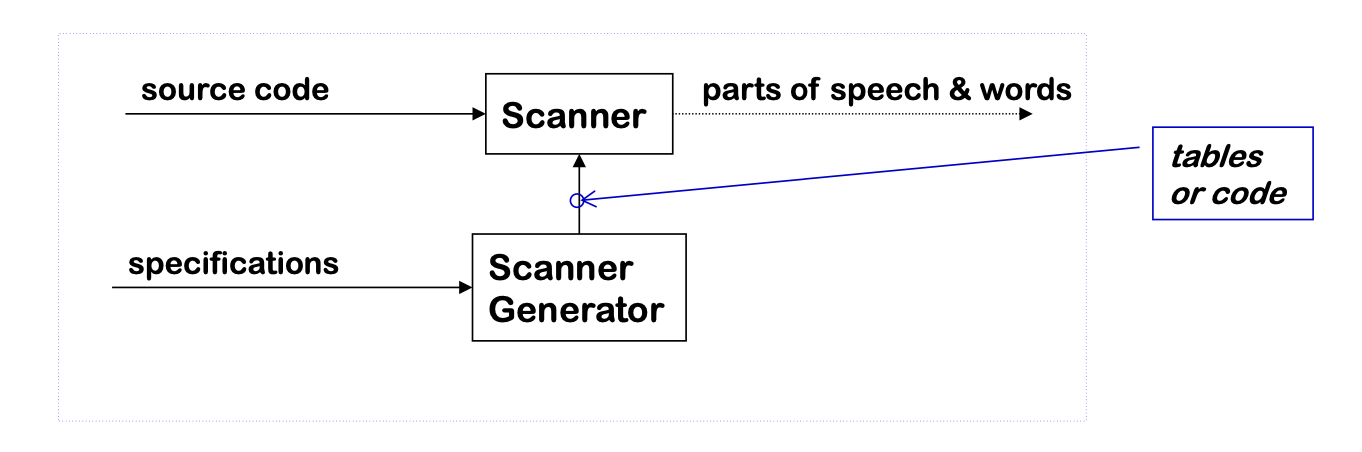

Constructing a Scanner - Quick Review

• The scanner is the first stage in the front end
• Specifications can be expressed using regular expressions
• Build tables and code from a DFA

Goal

• We will show how to construct a finite state automata to recognize any RE
• Overview:
  • Direct construction of a nondeterministic finite automata (NFA) to recognize a given RE
    • Requires ε-transitions to combine regular subexpressions
  • Construct a deterministic finite automata (DFA) to simulate the NFA
    • Use a set-of-states construction
  • Generate the scanner code
    • Additional specifications needed for details

NFAs

• An NFA accepts a string x iff ∃ a path through the transition graph from s0 to a final state such that the edge labels spell x
• Transitions on ε consume no input
• To “run” the NFA, start in s0 and guess the right transition at each step
  • Always guess correctly
  • If some sequence of correct guesses accepts x then accept

Why study NFAs?

• They are they key to automating the RE -> DFA construction
• We can paste together NFAs with ε transitions

Relationship between NFAs and DFAs

DFA is a special case of an NFA

• DFA has no ε transitions
• DFA’s transition function is single-valued
• Same rules will work

DFA can be simulated with an NFA

• Obviously

NFA can be simulated with a DFA

• Less obvious
• Simulate sets of possible states
• Possible exponential blowup in the state space
• Still, one state transition per character in the input stream

Automating Scanner Construction

To convert a specification into code:

1. Write down the RE for the input language
2. Build a big NFA
3. Build the DFA that simulates the NFA
4. Systematically shrink the DFA
5. Turn it into code

Scanner generators

• Lex and Flex work along these lines
• Algorithms are well known and well understood
• Key issue is interface to parser
• You could build one in a weekend!

RE -> NFA (Thompson’s construction)

• Build an NFA for each term
• Combine them with ε moves

NFA -> DFA (subset construction)

• Build the simulation

DFA -> Minimal DFA

• Hopcroft’s algorithm

DFA -> RE (Not part of the scanner construction)

• All pairs, all paths problem
• Take the union of all paths from s0 to an accepting state

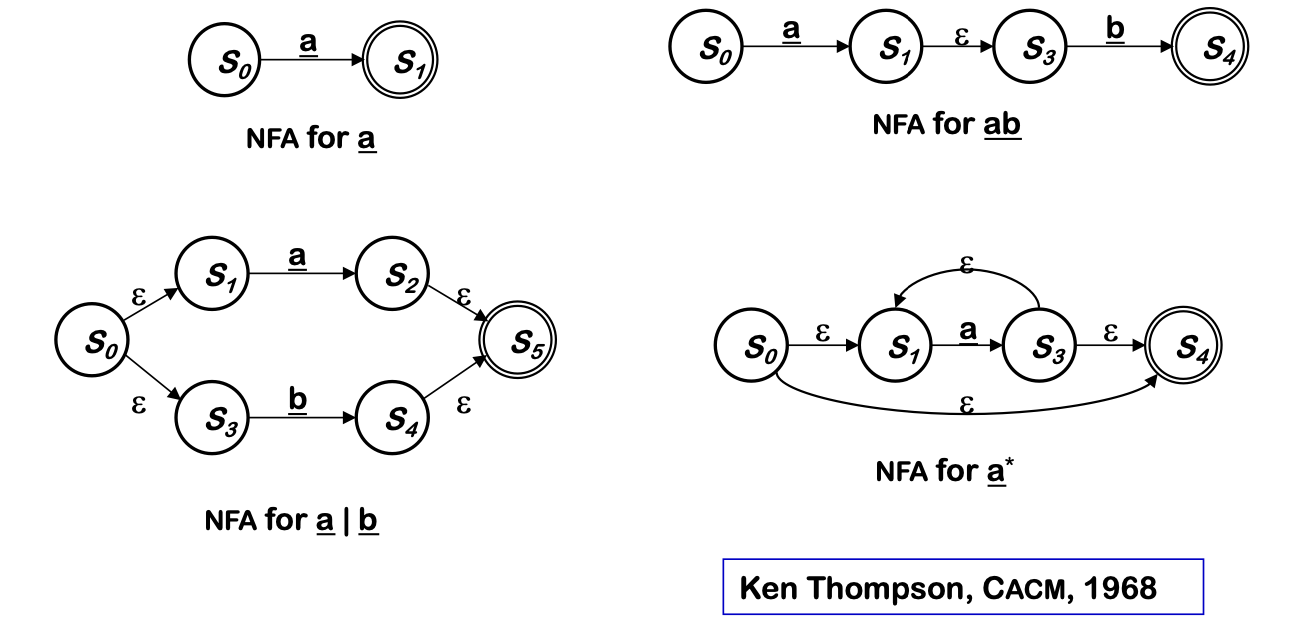

RE -> NFA using Thomspon’s Construction

Key idea

• NFA pattern for each symbol and each operator
• Each NFA has a single start and accept state
• Join them with ε moves in precedence order

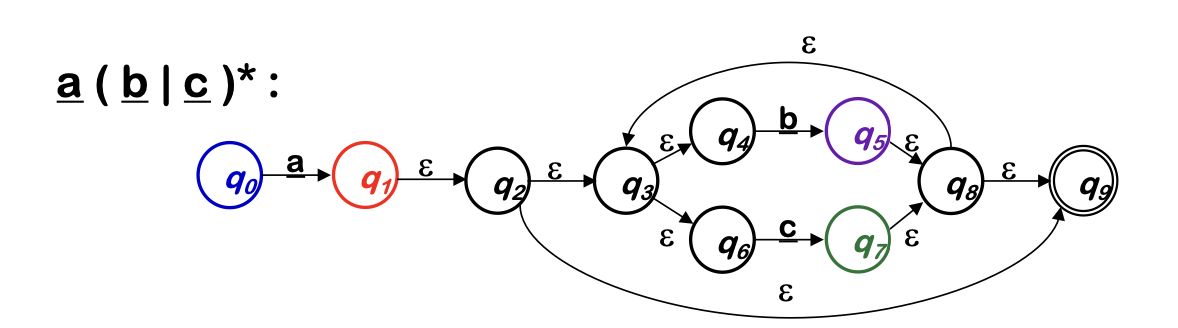

Examples

NFA -> DFA with Subset Construction

Need to build a simulation of the NFA

Two key functions

• move(si, a) is a set of states reachable from si by a
• ε-closure(si) is the set of states reachable from si by ε

The algorithm (sketch):

• Start state derived from s0 of the NFA
• Take its ε-closure S0 = ε-closure(s0)
• For each state S, compute move(S, a) for each a ∈ Σ, and take it’s ε-closure
• Iterate until no more states are added

Sounds more complex that it is…

Algorithm:

s0 <- ε-closure(q0)
add s0 to S
while (S is still changing)
  for each si ∈ S
    for each a ∈ Σ
      s? <- ε-closure(move(si, a))
      if (s? ∉ S) then
        add s? to S as sj
        T[si, a] <- sj
      else
        T[si, a] <- s?

The algorithm halts:

1. S contains no duplicates (test before adding)
2. 2^Q is finite
3. while loop adds to S, but does not remove from S (monotone) => the loop halts

S contains all the reachable NFA states

• It tries each symbol in each si
• It builds every possible NFA configuration => S and T form the DFA

Example of a fixed-point computation

• Monotone construction of some finite set
• Halts when it stops adding to the set
• Proofs of halting & correctness are similar
• These computations arise in many contexts

Other fixed-point computations

• Canonical construction of sets of LR(1) items
  • Quite similar to the subset construction
• Classic data-flow analysis
  • Solving sets of simultaneous set equations
• DFA minimization algorithm (coming up!)

We will see many more fixed-point computations

Example

Applying the subset construction

Finished in the next lecture…
