Lecture 5

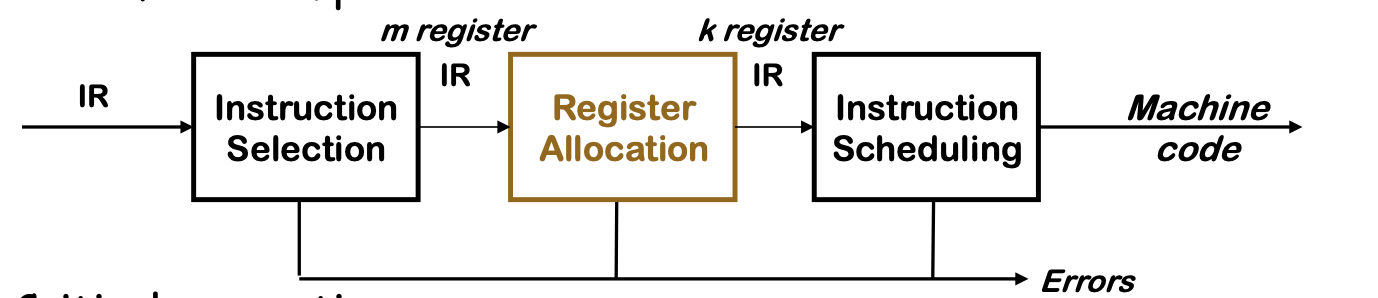

Register Allocation

• Local: within single basic block
• Global: across procedure / function

Register -> Register model means you use a fresh register for each value

Critical properties

• Produce correct code that uses k (or fewer) registers
• Minimize added loads and stores
• Minimize space used to hold spilled values
• Operate efficiently
  • O(n), O(n log2n), maybe O(n^2), but not O(2^n)

Memory Model / Code Shape

a := 1
b := 2
c := a + b + 3

Assumption: no aliasing

Register-Register Model

• Values that may safely reside in registers are assigned to a unique virtual register (alias analysis; unambiguous values); there are different “flavors”

All in registers

loadI 1 => r1
loadI 2 => r2
add r1,r2 => r3
loadI 3 => r4
add r3,r4 => r5

Preserve memory view (memory consistency)

loadI 1 => r1
storeAI r1 => r0,@a
loadI 2 => r2
storeAI r2 => r0,@b
add r1,r2 => r3
loadI 3 => r4
add r3,r4 => r5
storeAI r5 => r0,@c

Memory-Memory Model

• All program-named values reside in memory, and are only kept in registers as briefly as possible (load operand from memory, perform computation, store result back into memory)

loadI 1 => r1
storeAI r1 => r0,@a
loadI 2 => r2
storeAI r2 => r0,@b
loadAI r0,@a => r3
loadAI r0,@b => r4
add r3,r4 => r5
loadI 3 => r7
add r5,r7 => r8
storeAI r8 => r0,@c

Consider the following fragment of assembly code (or ILOC)

loadI   2     => r1 // r1 <- 2
loadAI  r0,8  => r2 // r2 <- y
mult    r1,r2 => r3 // r3 <- 2 * y
loadAI  r0,4  => r4 // r4 <- x
sub     r4,r3 => r5 // r5 <- x - (2 * y)

The problem

• At each instruction, decide which values to keep in registers
  • Note: a value is a pseudo-register (virtual register)
  • Simple if |values| <= |registers|
• Harder if |values| > |registers|
• The compiler must automate this process

The Task

• At each point in the code, pick the values to keep in registerse
• Insert code to move values between registers & memory
  • No reordering transformations (leave that to scheduling)
• Minimize inserted code - both dynamic & static measures
• Make good use of any extra registers

Allocation versus Assignment

• Allocation is deciding which values to keep in registers
• Assignment is choosing specific registers for values
• This distinction is often lost in the literature
  • The compiler must perform both

Local Register Allocation

• What’s “local”?
  • A local transformation operates on basic blocks
  • Many optimizations are done locally
• Does local allocation solve the problem?
  • It produces decent register use inside a block
  • Inefficiencies can arise at boundaries between blocks
• How many passes can the allocator make?
  • This is a compile-time (“off-line”) problem (not during program execution); typically, as many passes as it takes
• Memory-to-Memory vs. Register-to-Register model
  • Code shape and safety issues

Basic Approach of Allocators

Allocator may need to reserve physical registers to ensure feasibility

Notation: k is the number of registers on the target machine

• Must be able to compute memory addresses
• Requires some minimal set of registers, F
  • F depends on target architecture
• F contains registers to make spilling work
  • set F registers “aside” for address computation & instruction execution, i.e., these are no available for register assignment
• Note: F physical registers need to be able to support the pathological case where all virtual registers are spilled

What if k - |F| < |values| < k?

• The allocator can either
  • Check for this situation
  • Accept the fact that the technique is an approximation

Top-down allocator

• May use notation of live ranges of virtual registers
• Work from “external” notion of what is important
• Assign registers in priority order
• Register assignment remains fixed for entire basic block
• Save some registers for the values relegated to memory (feasible set F)

Bottom-up allocator

• Work from detailed knowledge about problem instance
• Incorporate knowledge of partial solution at each step
• Register assignment may change across basic block
• Save some registers for the values relegated to memory (feasible set F)

Live Ranges

Assume i and j are two instructions in a basic block

A value (virtual register) is live between its definition and its uses

• Find definitions (x <- …) and uses (y <- … x …)
• From definition to last use is its live range
  • How many static definitions can you have for a virtual register
• Can represent live range as an interval [i,j] (in block)
  • Live on exit

Let MAXLIVE be the maximum, over each instruction i in the block, of the number of values (virtual registers) live at i.

• If MAXLIVE <= k, allocation should be easy
  • No need to reserve set of F registers for spilling
• If MAXLIVE > k, some values must be spilled to memory

Finding live ranges is harder in the global case
