Lecture 3

Instruction Scheduling (Engineer’s View)

The Problem:

Given a code fragment (basic block) for some target machine and the latencies for each individual operation, reorder the operations to minimize execution time

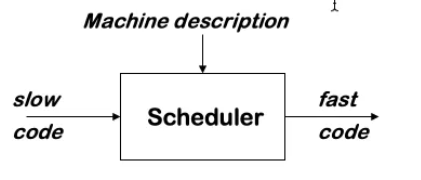

The Concept:

The Task:

• Produce correct code
• Minimize wasted (idle) cycles
• Scheduler operates efficiently

Data Dependencies (stmt./instr. level)

Dependencies => defined on memory locations / registers

Statement / instruction b depends on statement / instruction a if there exists:

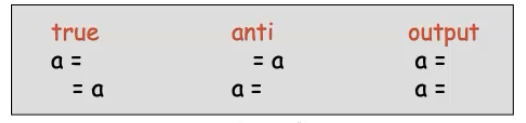

RAW = Read after Write WAR = Write after Read WAW = Write after Write

• true of flow dependence

  • a writes a location / register that b later reads (RAW conflict)

• anti dependence

  • a reads a location / register that b later writes (WAR conflict)

• output dependence

  • a writes a location / register that b later writes (WAW conflict)

Dependencies defines ORDER CONSTRAINTS that need to be respected in order to generate correct code.

Precedence / Dependence Graphs

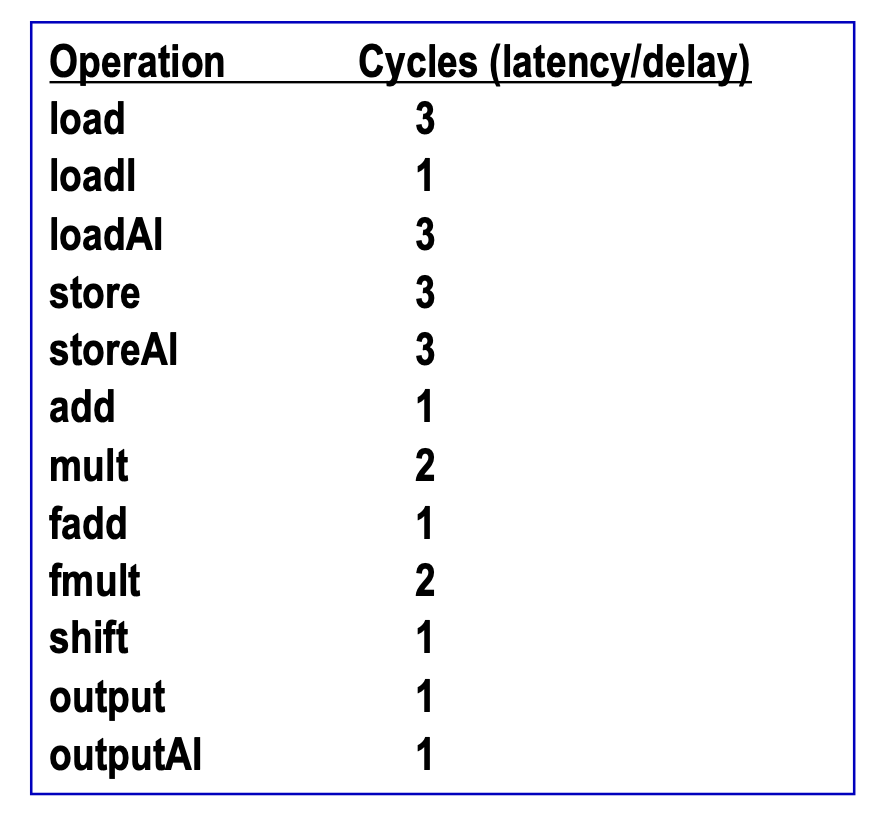

Example latencies

To capture properties of the code, build a precedence/dependence graph G

• Nodes n in G are operations with type(n) and delay(n)
• An edge e = (n1, n2) in G if n2 depends on n1

a:  loadAI  r0,@w   => r1
b:  add     r1,r1   => r1
c:  loadAI  r0,@x   => r2
d:  mult    r1,r2   => r1
e:  loadAI  r0,@y   => r3
f:  mult    r1,r3   => r1
g:  loadAI  r0,@z   => r2
h:  mult    r1,r2   => r1
i:  storeAI r1      => r0,@w

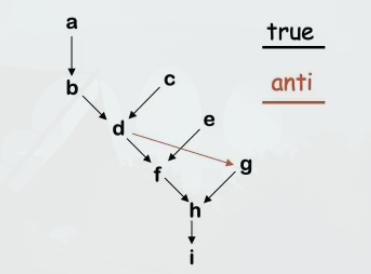

The Precedence Graph

All other dependencies (output & anti) are covered, i.e., are satisfied through the dependencies shown

The Big Picture

1. Build a dependency graph, P
2. Compute a priority function over the nodes in P
3. Use list scheduling to construct a schedule, one cycle at a time

• Can only issue / schedule at most one instructions per cycle
• Use a set of operations that are ready
• At each cycle
  1. Choose a ready operation (priority based) and schedule it
  2. Increment cycle
  3. Update the ready set

Local list scheduling

• The dominant algorithm for many years
• A greedy, heuristic, local technique

Scheduling Example

1. Build the dependency graph (using the same one as above)

2. Determine priorities: longest latency-weighted path
